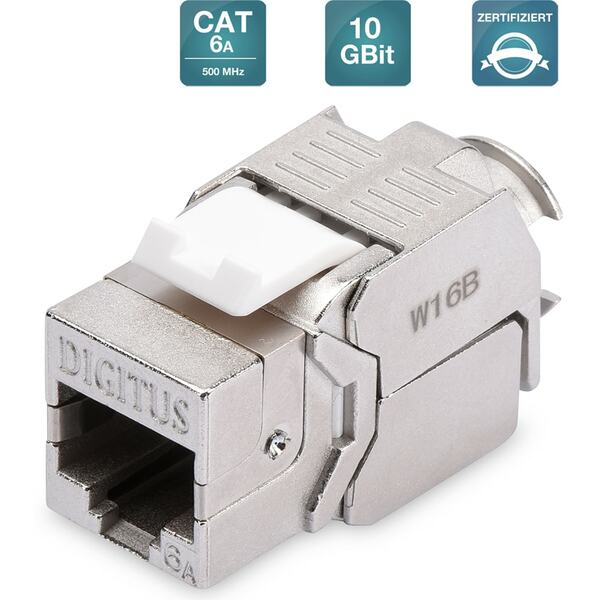

Modul Digitus RJ45 STP Cat.6a TL DN93615

DIGITUS CAT 6A Keystone Jack, shielded,Re-embedded, 500MHz

acc. ISO/IEC 11801:2002 AM2:2009/09, tool free connection

Technical Details:

Material enclosure: Zinc diecast – Nickel plated

Material contacts: Phosphor bronze

360° cable screen connection for enhanced EMI protection

Contacts coating: Nickel, gold plated 0,5

Operating Temperature: -10°C c+60°C (ISO/IEC

11801,ANSI/TIA/EIA 568 B.2)

Material PCB: FR4, UL 94V-0, multilayer 1,45mm thickness

Mating cycles: = 750 (ISO/IEC 11801, IEC 60603-7-5)

Diameter Cu-Conductor: AWG (26/1 … 23), stranded and solid

RJ 45 jack, female, for patch panel installation

Compact form allows an installation of 24 x in 483mm (19) 1U

blank Panel

Suitable for bracket typ DN-91410, DN-91411, DN-91412

Opening size acc. Keystone Standard 19.35 mm x 14.8 mm

Tool free cable installation via LSA stripes, color coded

according to EIA/TIA 568 A & B

Suitable for design wall plates for several well-known

switching programs e.g. Busch-Jaeger part number: 1812 or

1866EB

Suitable for design wall plates for switching program PEHA

part number: D 600 MJ8

Suitable for design wall plates for switching program FELLER

(CH) EDIZIOdue part number e.g.: 1183-028.FMI.F.61

Fits easily in wall- and floor boxes, patch panels, desk boxes

through short depth

Dimensions (HxWxD): 20,14,34 mm

Model:

Modul digitus rj45 stp cat.6a tl dn93615

Naziv i vrsta robe:

Uvoznik:

Zemlja porekla:

Prava potrošača:

Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
