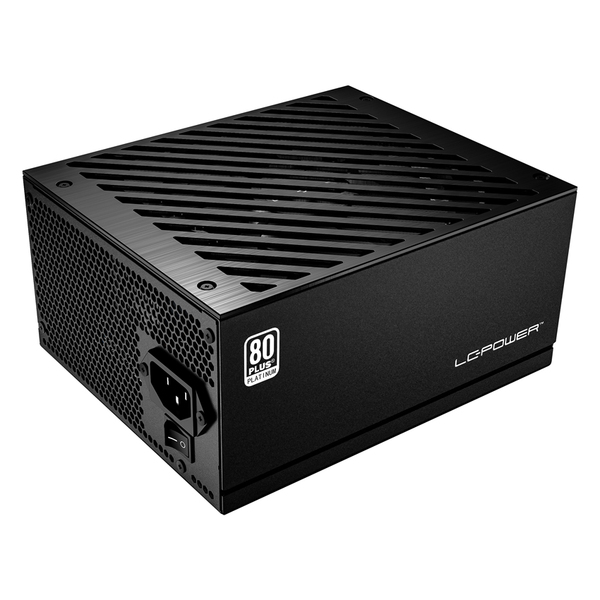

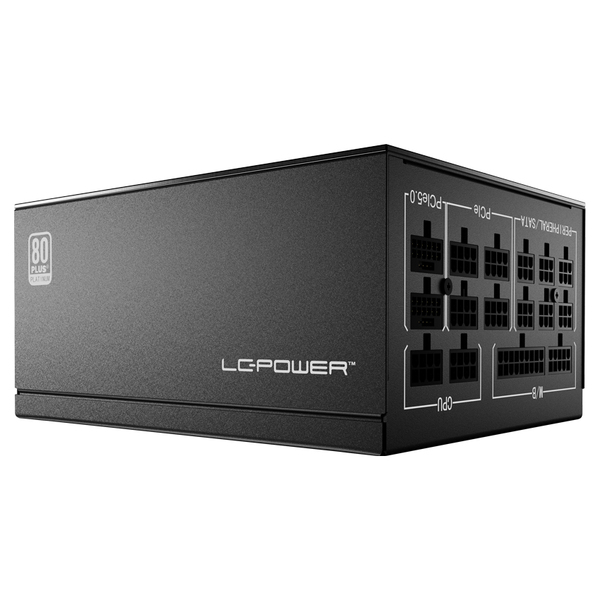

Napajanje 1200W LC Power LC1200P V3.0 80 PLUS Platinum PCIe 5.0

Specifikacija

Proizvodjac LC POWER

Power supply series Platinum Series

ATX standard ATX V3.0

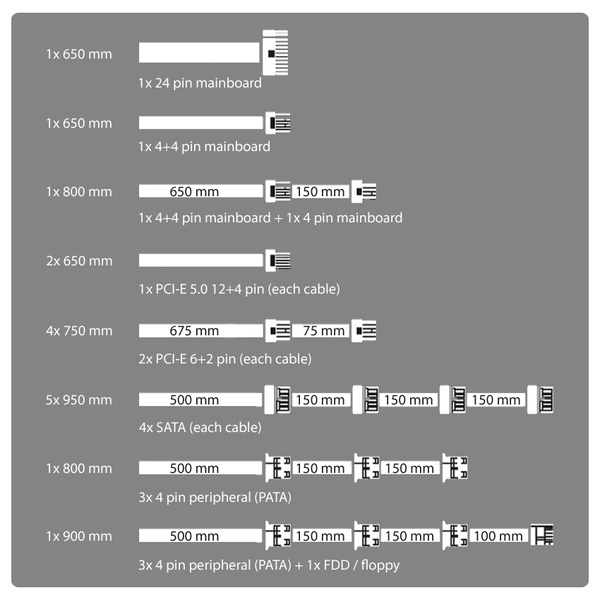

Connectors

20+4 pin mainboard 1x 650 mm

4+4 pin mainboard 12 V (8 pin EPS) 2x 650 mm

4 pin mainboard 12 V 1x 800 mm

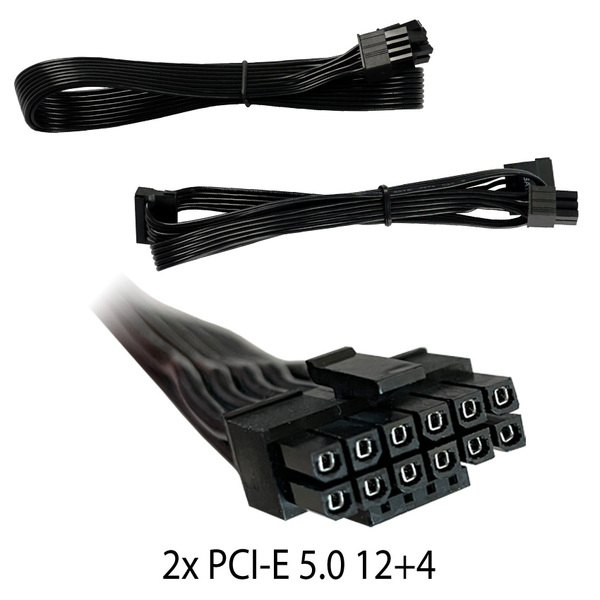

PCI-Express 5.0 12+4 pin 2x 650 mm

IMPORTANT: Please connect only one graphics card up to 450 W or 600 W to the power supply.

Alternatively two graphics cards up to 300 W each can be connected.

PCI-Express 6+2 pin 8x overall

(4x 675 mm / 4x 750 mm)

How to use

(at the same time) Option 1: 20x SATA & 3x PATA

Option 2: 16x SATA & 6x PATA

SATA 20x overall

(5x 500 mm / 5x 650 mm / 5x 800 mm / 5x 950 mm)

PATA 6x overall

(2x 500 mm/ 2x 650 mm / 2x 800 mm)

FDD 1x 900 mm

Mark of conformity CE / TÜV

Fan 135 mm

PFC active

Dimension PSU 86 x 180 x 150 mm

Dimension retail 120 x 295 x 225 mm

Weight (product / overall) 3,67 / 4,03 kg

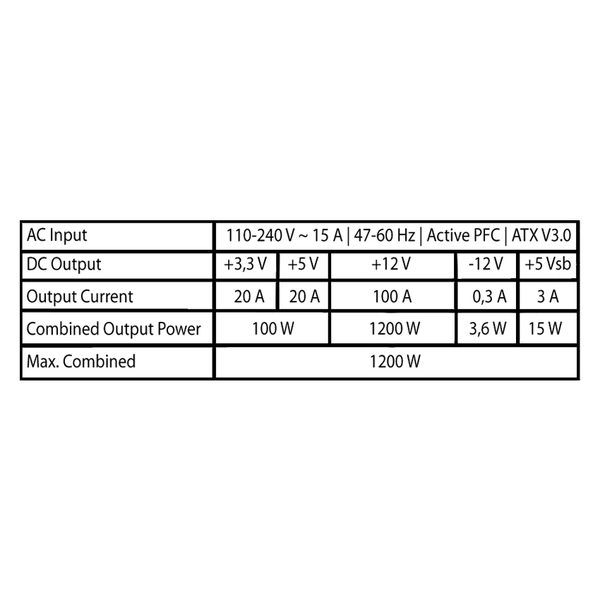

Power rating 1200 W

+3,3 V 20 A

+5 V 20 A

max. combined 100 W

+12 V 100 A

max. combined 1200 W

Certified 80 PLUS® PLATINUM

Efficiency up to 92 %

Standby consumption < 0,5 W - ErP 2013

Temperature control for case fan yes

Security circuitry OVP = Over-Voltage Protection

OCP = Over-Current Protection

OPP = Over-Power Protection

SCP = Short-Circuit Protection

UVP = Under-Voltage Protection

Full range (110 V / 220 V) yes

Haswell compatible yes

Colour black

Manufacturer code LC1200P V3.0

EAN 4260070129827

Garancija 3 godine

Model:

Napajanje 1200w lc power lc1200p v3.0 80 plus platinum pcie 5.0

Naziv i vrsta robe:

Uvoznik:

Zemlja porekla:

Prava potrošača:

Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača
