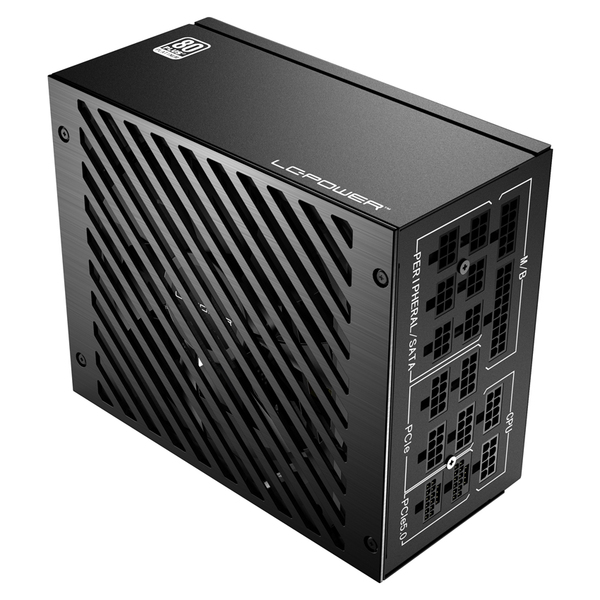

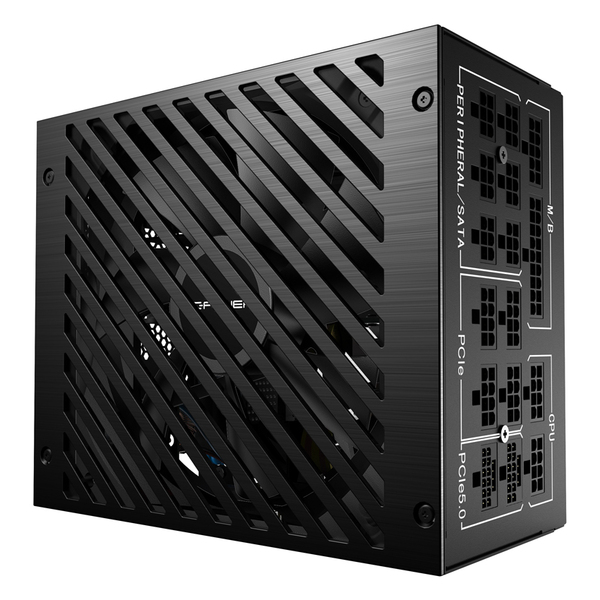

Napajanje 850W LC Power LC850P V3.0 80 PLUS Platinum PCIe 5.0

Specifikacija

Proizvodjac LC POWER

Power supply series Platinum Series

ATX standard ATX V3.0

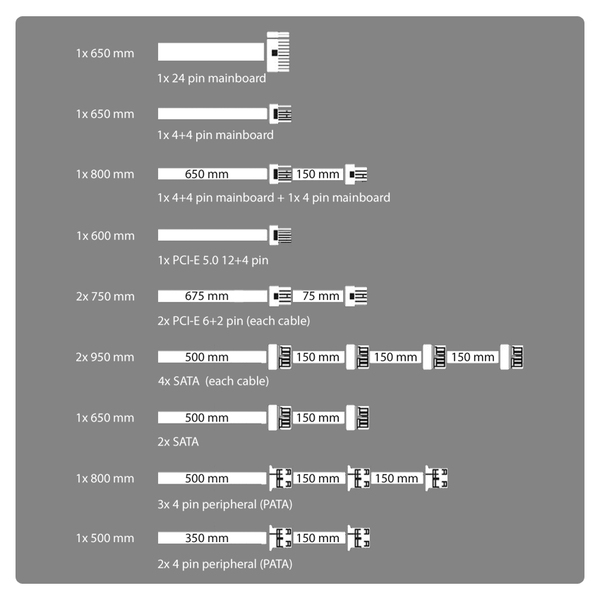

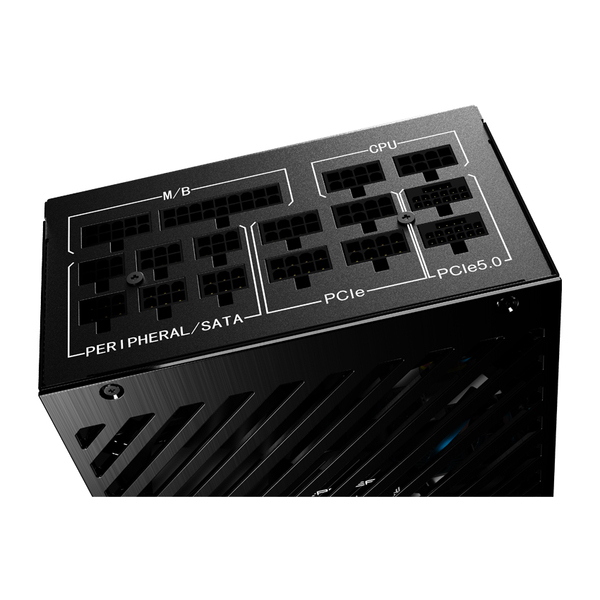

Connectors

20+4 pin mainboard 1x 650 mm

4+4 pin mainboard 12 V (8 pin EPS) 2x 650 mm

4 pin mainboard 12 V 1x 800 mm

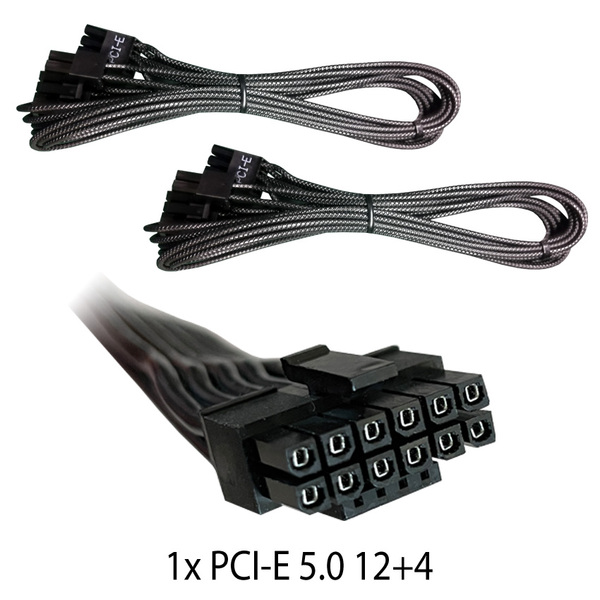

PCI-Express 5.0 12+4 pin 1x 600 mm

IMPORTANT: Please connect only one graphics card up to 600 W to the power supply.

PCI-Express 6+2 pin 4x overall

(2x 675 mm / 2x 750 mm)

SATA 10x overall

(3x 500 mm / 3x 650 mm / 2x 800 mm / 2x 950 mm)

PATA 5x overall

(1x 350 mm / 2x 500 mm/ 1x 650 mm / 1x 800 mm)

FDD -

Mark of conformity CE / TÜV

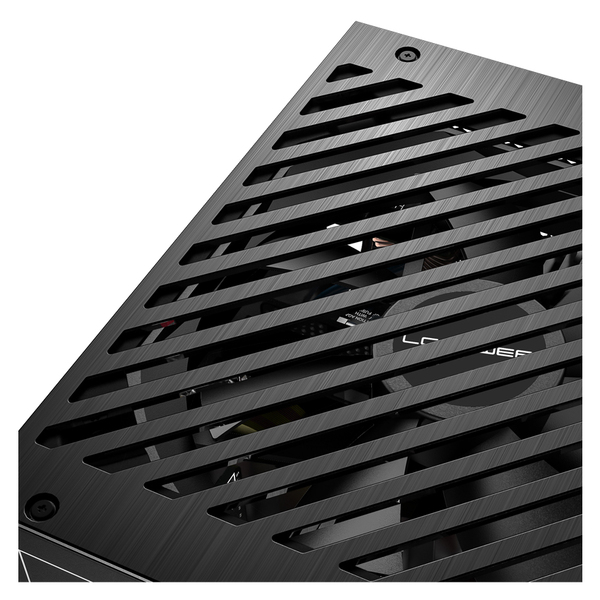

Fan 135 mm

PFC active

Dimension PSU 86 x 180 x 150 mm

Dimension retail 115 x 310 x 225 mm

Weight (product / overall) 2,92 / 3,25 kg

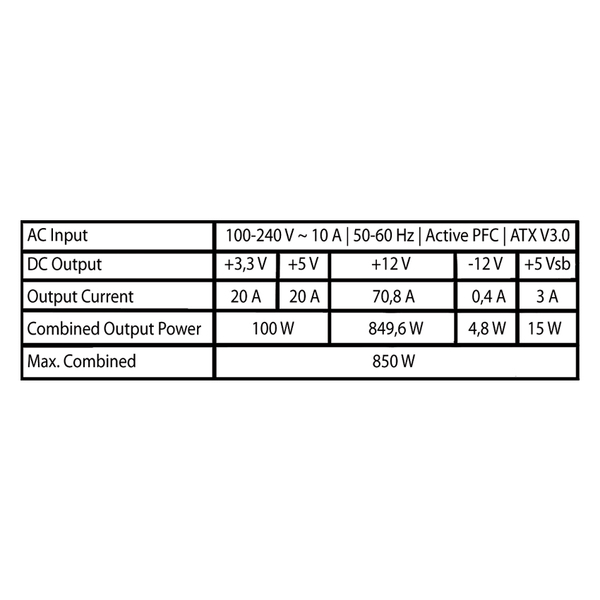

Power rating 850 W

+3,3 V 20 A

+5 V 20 A

max. combined 100 W

+12 V 70,8 A

max. combined 850 W

Certified 80 PLUS® PLATINUM

Efficiency up to 92 %

Standby consumption < 0,5 W - ErP 2013

Temperature control for case fan yes

Security circuitry OVP = Over-Voltage Protection

OCP = Over-Current Protection

OPP = Over-Power Protection

OTP = Over-Temperature Protection

SCP = Short-Circuit Protection

UVP = Under-Voltage Protection

Full range (110 V / 220 V) yes

Haswell compatible yes

Colour black

Manufacturer code LC850P V3.0

EAN 4260070120213

Garancija 3 godine
